DEKKO PALISADE Wall + Ceiling

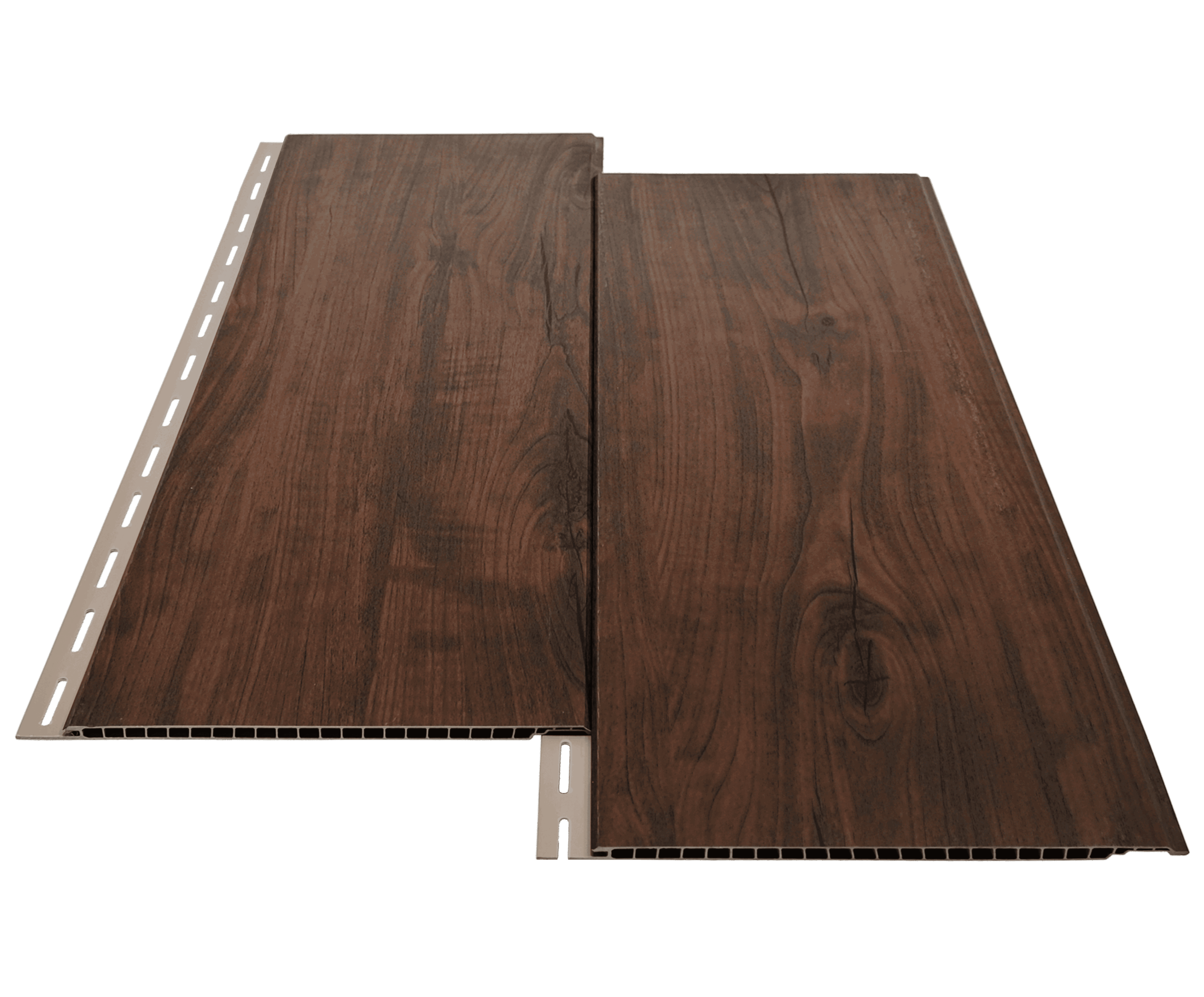

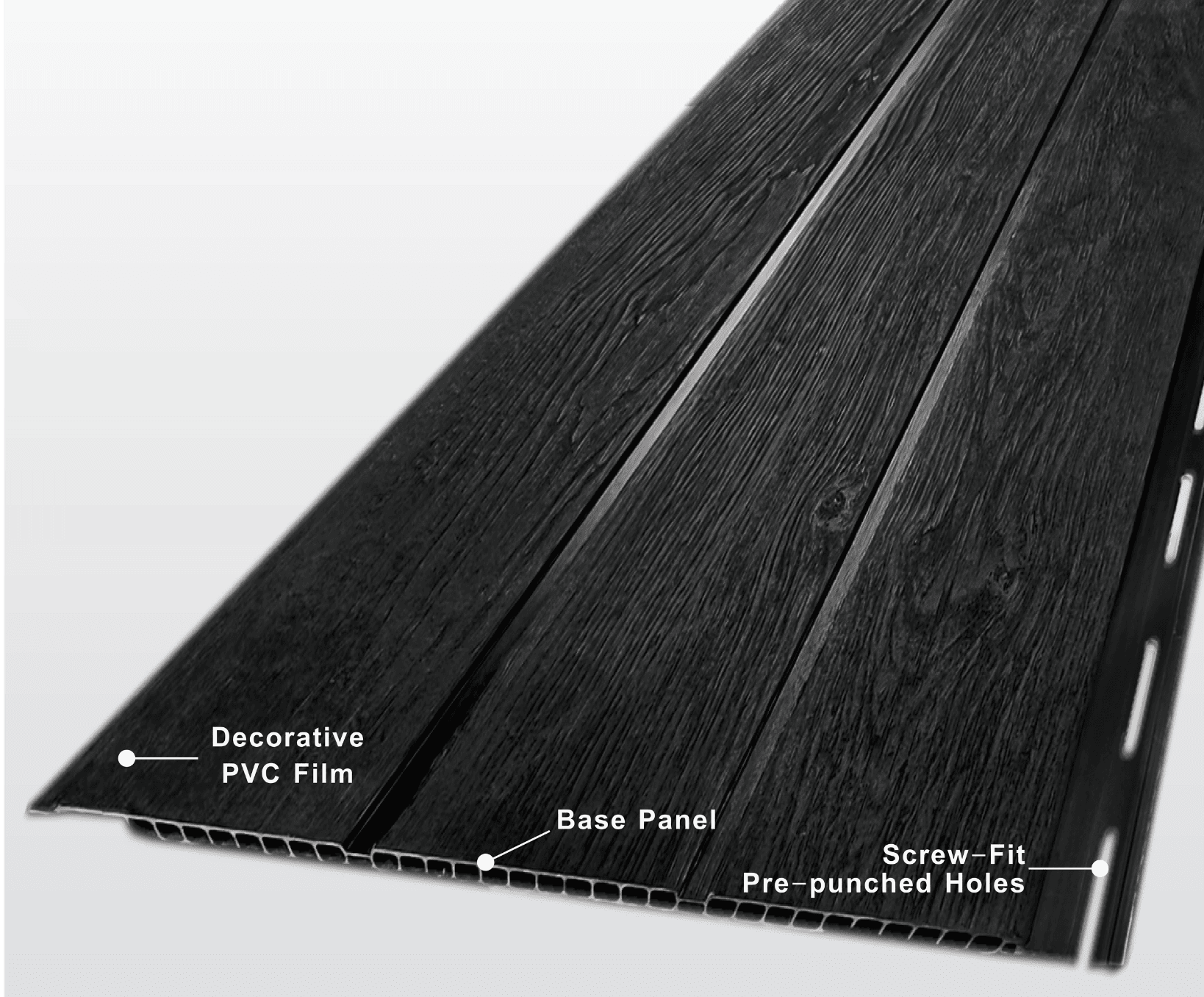

DEKKO PALISADE is a modular wall and ceiling lining system available in Seamless, U-Joint and V-Joint configurations. The system is suitable for both wet and dry environments and is supplied in a range of wood-grain textures and white finishes. Panels feature a pre-punched lip edge and a precision tongue-and-groove interlocking mechanism to ensure fast installation and consistent alignment. Typical applications include eaves, awnings, alfresco areas, garages, carports and internal wall and ceiling linings.

Since 2009, DEKKO PALISADE panels have been proudly designed and developed in Australia to suit a wide range of residential and commercial applications. Now in their third generation, these advanced wall and ceiling panels are available in a variety of stylish finishes, including UV-treated wood grains or classic Matt and gloss white with V-joint, U-joint, and seamless options.

Their prominent and versatile appearance makes them ideal for both indoor walls and ceilings, as well as outdoor ceiling applications. Common uses include living rooms, bedrooms, alfresco areas,

Key Features

100% waterproof
Resistant to mould, bacteria, and chemicals
Lightweight (only 5.5 kg per m2)
Easy to install—no painting or varnishing required
Will not warp, rot or rust
Fire-rated Group 1 (CSIRO tested to AS/NZS 3837)
Fully Recycable and Cost-effective

DEKKO PALISADE panels offer a clean, durable, and practical solution for modern wall and ceiling cladding needs.

Applications

Architecture and Interior

Bathrooms and Public Amenities

Childcare Center

College Palisade

Health Industry

Hotel Palisade

Industrial Warehouse

Marine Industry

Modular, Tiny and Motor Homes

Pool Palisade

Residential Palisade

Retail Stores

Advantages

Durable

Antibacterial

Fast and Easy to Install

Insect Proof

No Maintenance

Waterproof

AU/NZ Certified

Recyclable

White Finishes

Cost Effective

Fire Rated

Long Length

Products Features	Dekko Palisade PVC Panel	Plasterboard	Timber Panel	MDF	Cement Sheet
Waterproof
Fire Resistant
UV Resistant
Fast Installation
Cost Effective
Light Weight
Maintenance

TRIMMING ACCESSORIES

Profiles:

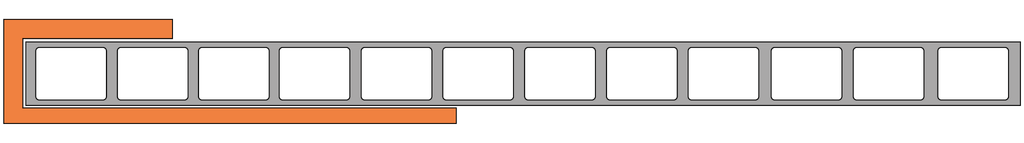

J Profiles

J profile is designed to cap the end of panels or premeter such as ceiling or top of the wall

H Profiles

J profile is designed to cap the end of panels or premeter such as ceiling or top of the wall

External Profile

J profile is designed to cap the end of panels or premeter such as ceiling or top of the wall

Internal Profiles

J profile is designed to cap the end of panels or premeter such as ceiling or top of the wall

Installation Tools

Grinder Tools

Level

Measuring tape

Drills

Silicone Adhesive and Gun

Angle Mesuring square

Always use P‐16 glue with the mechanical fixings of screws in punching holes for a sound installation of the panels
Panels can be fixed either directly to the metal and timber frame or on an existing finished surface like plasterboard
Cut and install the end cap using glue and screw where the paneling starts and along the sides of perimeter
To fit the first panel firmly into the J profile (end cap) prepare it by trimming the male side (tongue) then apply the glue on the substrate wherever the panel touches at least within every 400‐500mm apart. Begin the panel installation by Inserting either ends to the j profile then push the trimmed edge against the starting point using scraper to guide the panel. Make sure this panel Is fitted in a square and plumb position because all the rest will follow the first one. For the following panels you only cut the length to size and follow the same process and the last panel will fit together with J profile then to be fixed only using glue
On a standard wall of 2.7m if it is %100 true, you may only require minimum 4 fixings starting from 10‐30cm off the top and bottom edge and two around the center to fix the panel in place but adding more glue for safe and secure installation. In case of installing the panels directly to the framework (steel or Timber), screws should be fixed on every stud or batten with the combination of our recommended P16 glue and screw. The maximum frame spacing on the ceiling and walls is 450mm apart
After completing the installation, simply wipe the dust to get the best look of the panels

Installation Guides

The panels are mounted onto the pre-assembled framework of vertical studs and horizontal nog-gings.

Alignment is critical to ensure a flush and secure fit.

STEP 1

Measure and cut the panel to the required dimensions using a Drop Saw or angle grinder.

STEP 2

Apply the glue to substrate.

STEP 3

Fixing the panels using DEKKO PLUS specified screws through the pre-punched holes, wherever cossing the substrate.

STEP 4

Check the alignment using a level to ensure a straight and seamless installation.

Chemical composition

PVC resin and Calcium Carbonate

Surface Treatment & Colour

Joint Style

Maximum Span and Bending radius

Environmental

Test and certification

Packing, handling, protection and delivery instructions

DEKKOPLUS panels come delivered in carton and plastic shrink packaging, care should be taken when handling these panels since they are very flexible
Normally our panels are packed up to 50 kg each so for a safe work procedure it must be carried by two persons. If a forklift is used to move the products, a solid base is required for under to support the panels preventing them over bending
Do not keep the products outside the packaging in direct sunlight for too long for possible UV damage
All the carton packaging is recyclable
