Dekko Ceiling
Dekko Ceiling
These products are designed as a wall panels with a seamless, U groove or V groove joint. These panels are Ideal in wet or dry environments for indoor areas and available in four different surface finishes such as, high gloss white, Satin white, Matt white and Various different colors and timber textures The white finishes are UV oil treated for steady colour in long term.
DEKKOPLUS panels are constructed from high quality virgin PVC and Calcium
Carbonate raw materials and impact modifiers, extruded in a form of tongue in groove system.
Our Products
Advantages
- U groove formed PVC panel
- Easy and fast installation
- Economically viable
- Highly flexibility
- Fire rated by CSIRO (Group 1 - AS/NZ3837)
- Waterproof
- No Painting or varnishing
- No warping, rotting and rusting
- %100 recyclable
- Hygienic
- Anti-mold and bacteria
- Washable and easy to clean
- Light weight (5.2KG/SQM)
- Chemical resistant
Applications

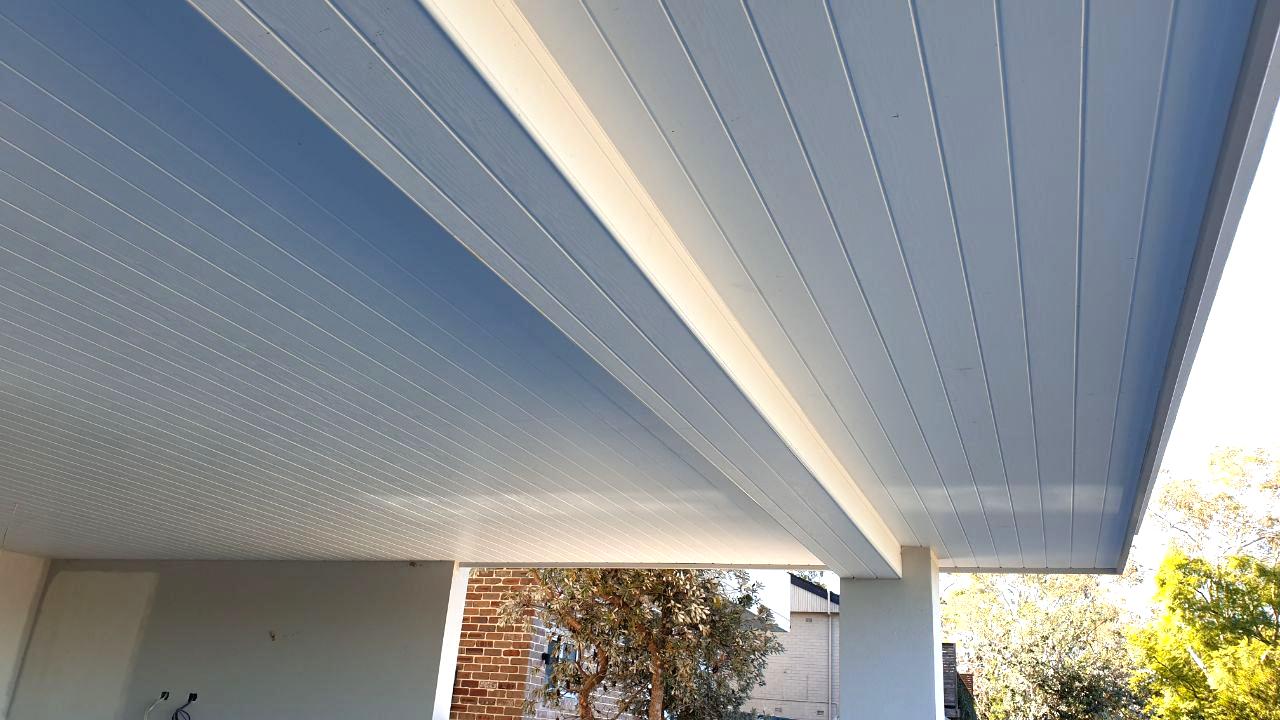

Dekko Ceiling panels in U groove style offer a classic style of paneling systems applicable on walls in wet or dry indoor areas
Commercial
Bathrooms, indoor pools, bedrooms, Offices, shops and many more
Residential
Bathrooms, indoor pools, bedrooms and many more
Installation Guidelines
- To cut the panels use a steel blade on angle grinder or a drop saw with an aluminum cutting blade to get a smooth cut.
- It is highly recommended to wear your safety gears such as goggles and earplugs when cutting the panels.
- Always use P-16 glue with the mechanical fixings such as Fixing clips and screw for a sound installation of the panels.

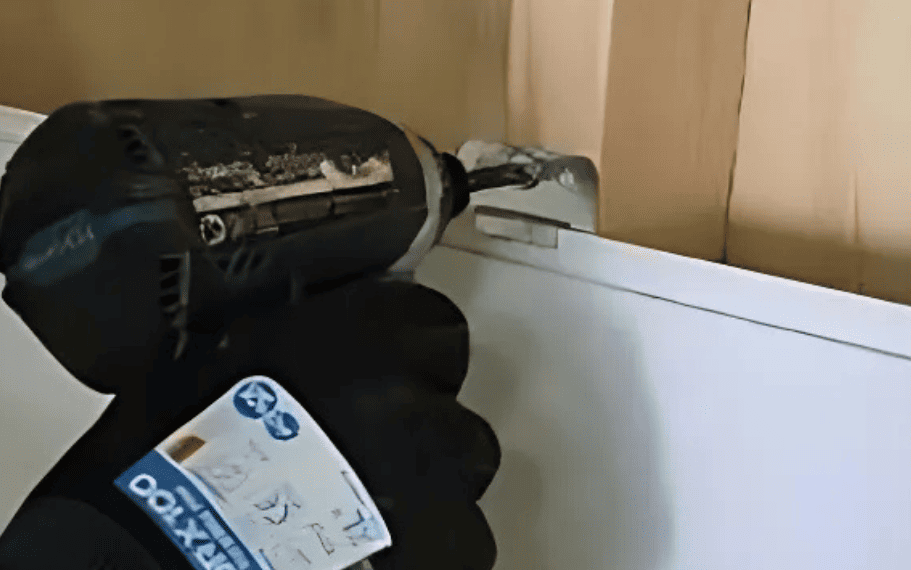

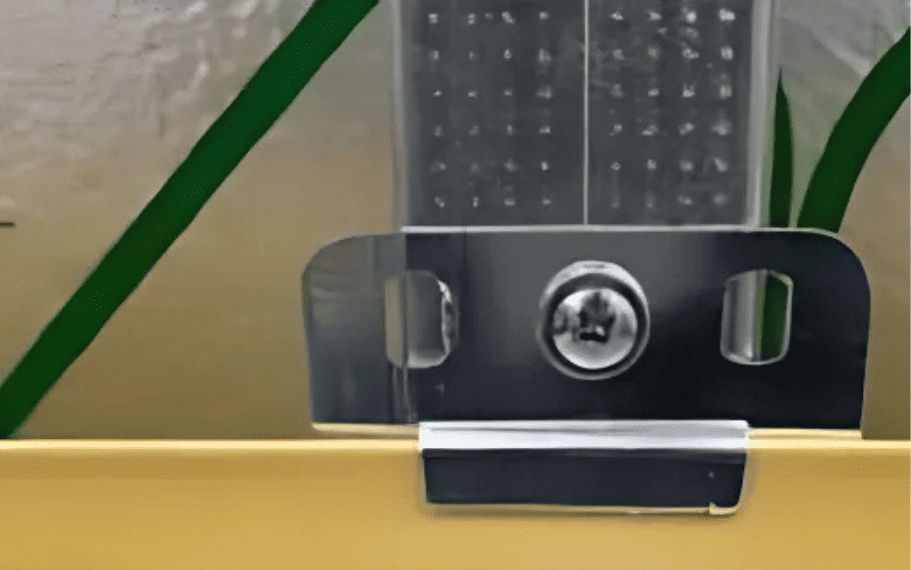

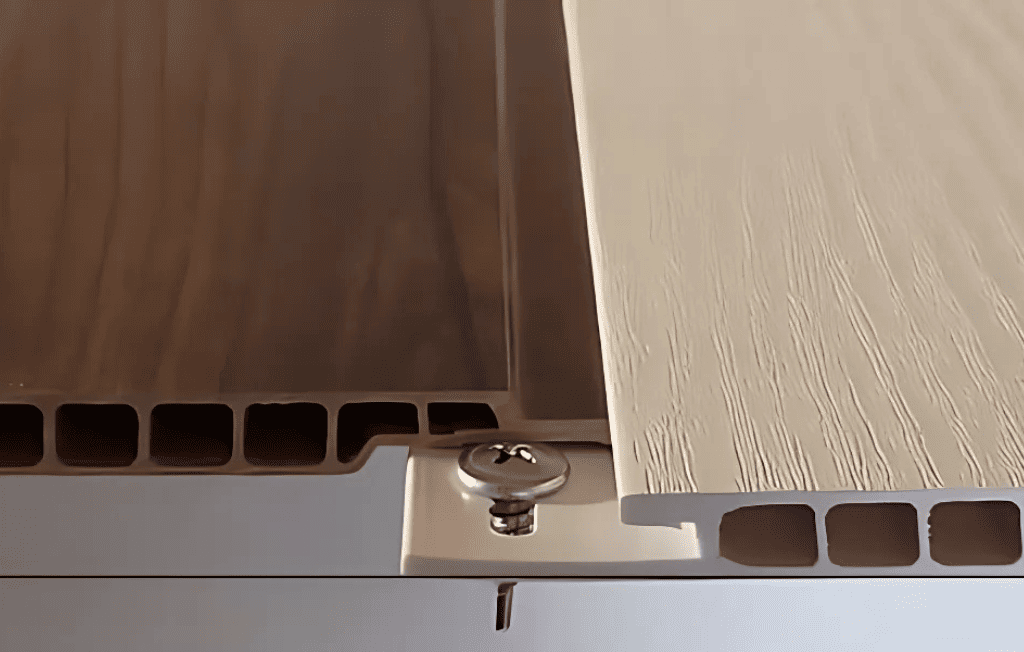

Fixing Clip & Screw

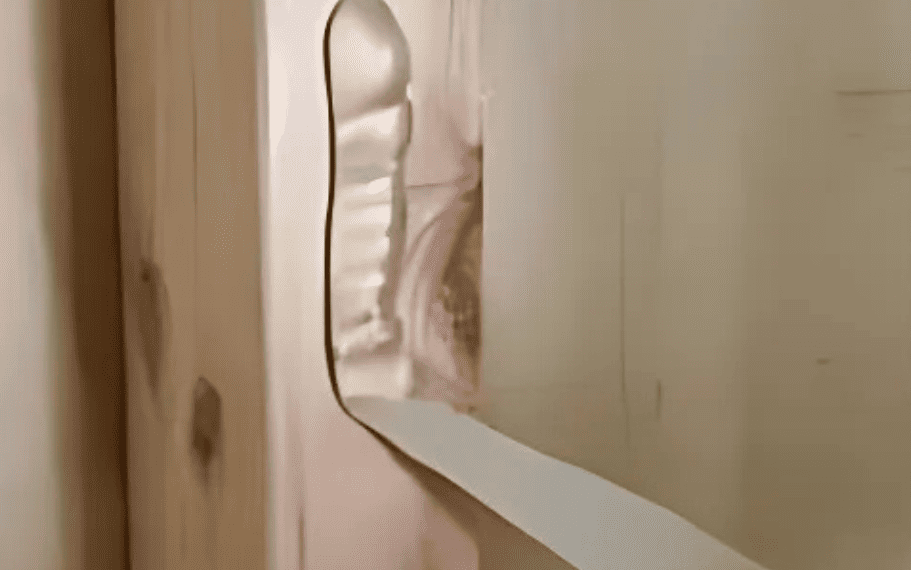

Glue Application
Installation on aluminium or metal frames
- Panels can be fixed either directly to the metal and timber frame or on an existing finished surface like plasterboard.
- Cut and install the end cap using glue and screw where the paneling starts and along the sides of perimeter.
- To fit the first panel firmly into the J profile (end cap) prepare it by trimming the male side (tongue) then apply the glue on the substrate wherever the panel touches at least within every 400-500mm apart. Begin the panel installation by Inserting either ends to the j profile then push the trimmed edge against the starting point using scraper to guide the panel. Make sure this panel Is fitted in a square and plumb position because all the rest will follow the first one. For the following panels you only cut the length to size and follow the same process and the last panel will fit together with J profile then to be fixed only using glue.
- On a standard wall of 2.7m if it is %100 true, you may only require minimum 4 fixings starting from 10-30cm off the top and bottom edge and two around the center to fix the panel in place but adding more glue for safe and secure installation. In case of installing the panels directly to the framework (steel or Timber), screws should be fixed on every stud or batten with the combination of our recommended P16 glue, fixing clip and screw. The maximum frame spacing on the ceiling and walls is 450mm apart.
- After completing the installation, simply wipe the dust to get the best look of the panels

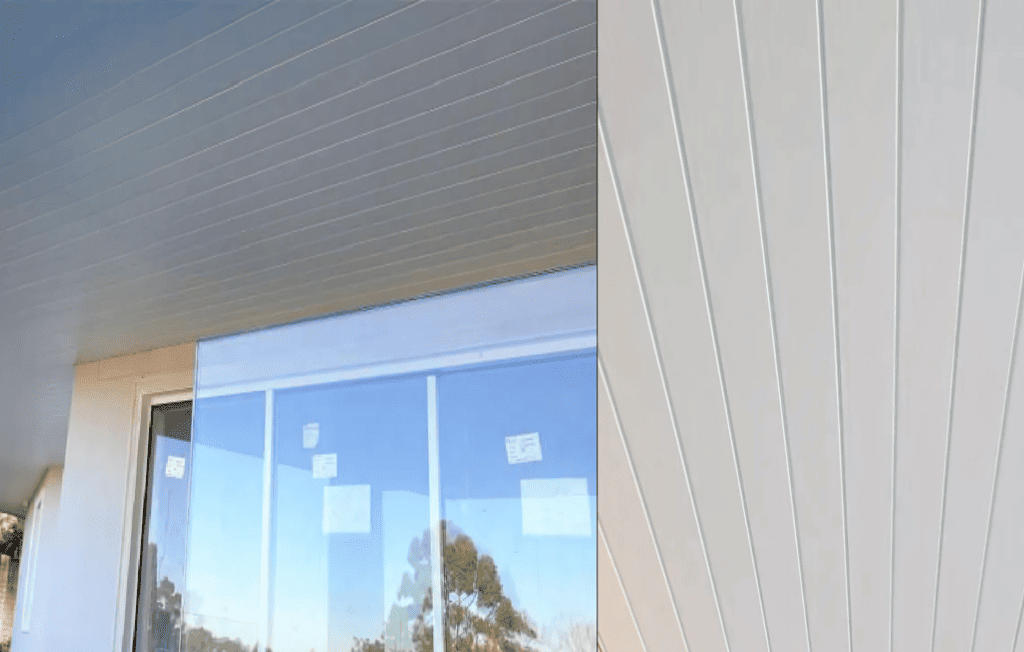

Chemical composition
PVC resin and Calcium Carbonate
Surface Treatment & Colour
- Available in standard matt white and Timber texture.
- Custom sizes and colors can be made for bulk orders.
Joint Style
- U groove joint

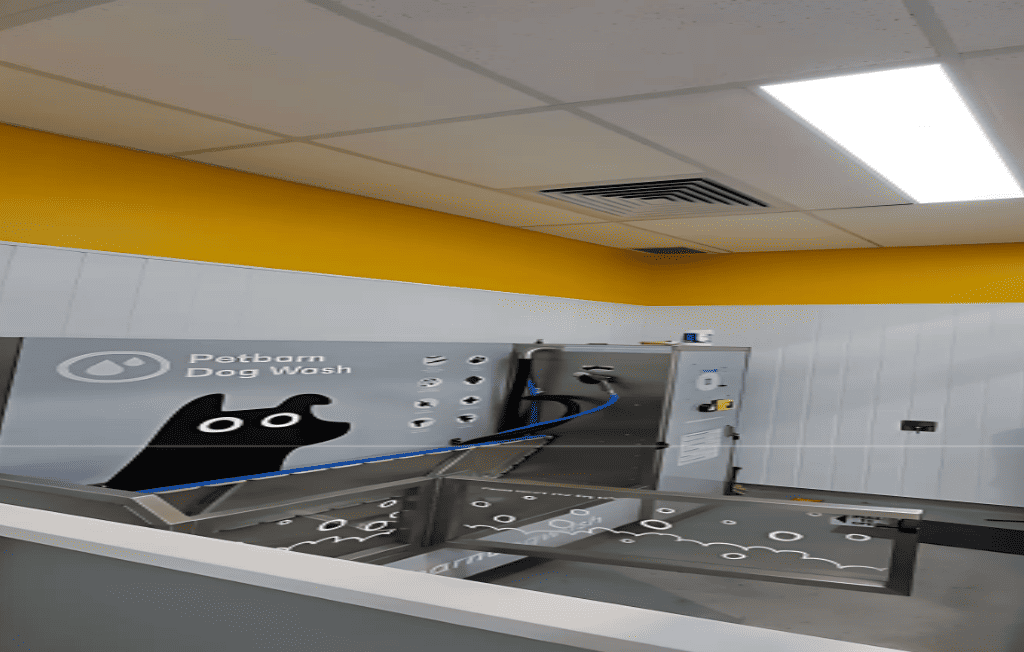

Maximum Span and Bending radius
- Ceilings, indoor up to 600mm, outdoor 450mm of two beam
- Walls, 450mm center of two beams.
- Bending radius,600mm

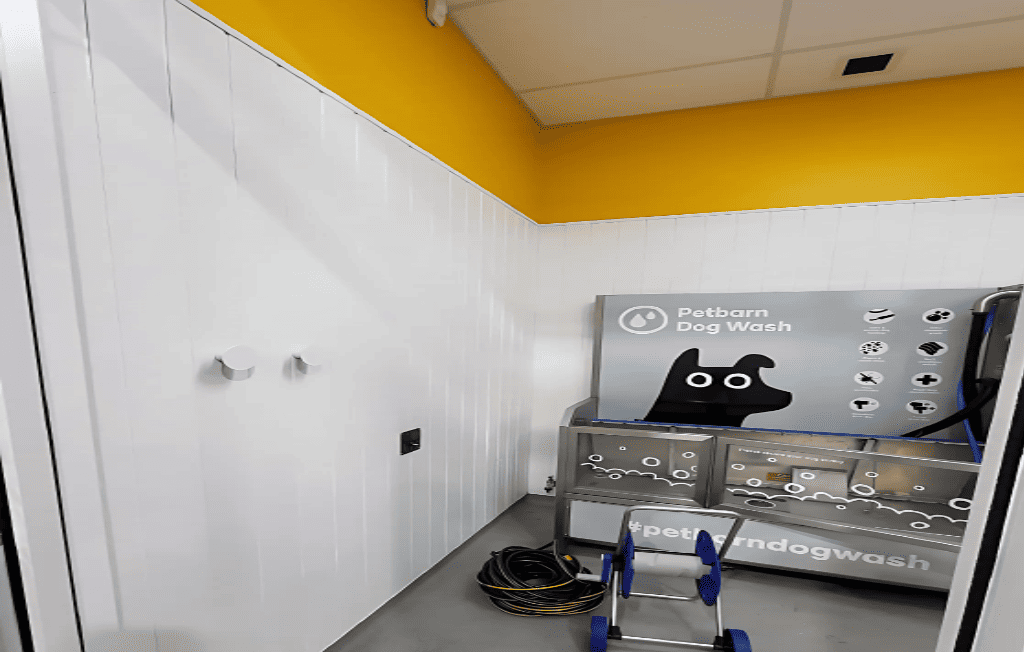

Environmental
- PVC panel site cuttings and unused pieces can be collected and recycled.
Test and certification
- Group 1 with the specification A2.4 of the building code of Australia (CSIRO AS/NZ 3837)
- Group 1-S in accordance with ISO 5660 parts 1 & 2 (NZBC verification Method C/VM 2 appendix A)
Packing, handling, protection and delivery instructions
- DEKKOPLUS panels come delivered in carton and plastic shrink packaging, care should be taken when handling these panels since they are very flexible
- Normally our panels are packed up to 50 kg each so for a safe work procedure it must be carried by two persons. If a forklift is used to move the products, a solid base is required for under to support the panels preventing them over bending.
- Do not keep the products outside the packaging in direct sunlight for too long for possible UV damage.
- All the carton packaging is recyclable.
